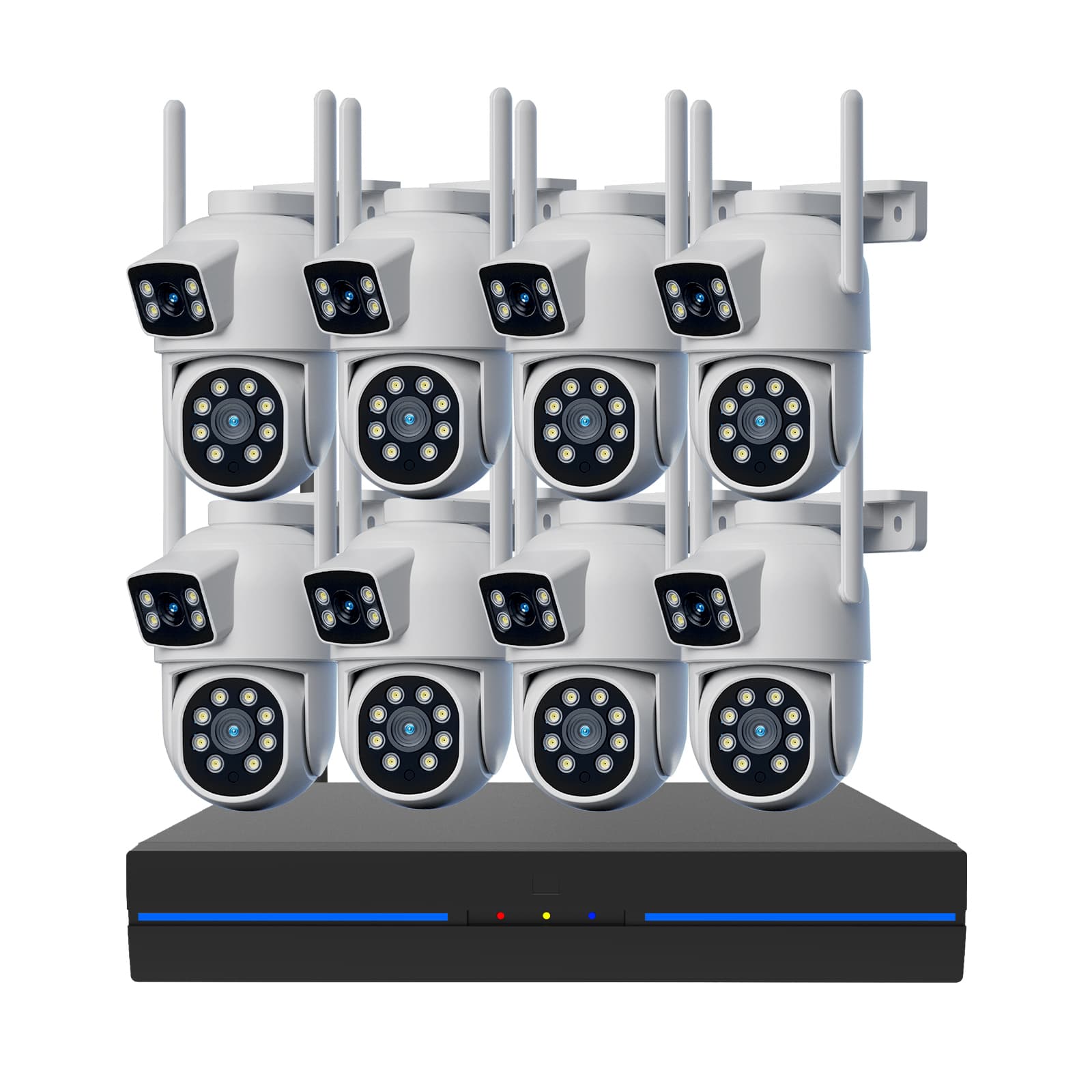

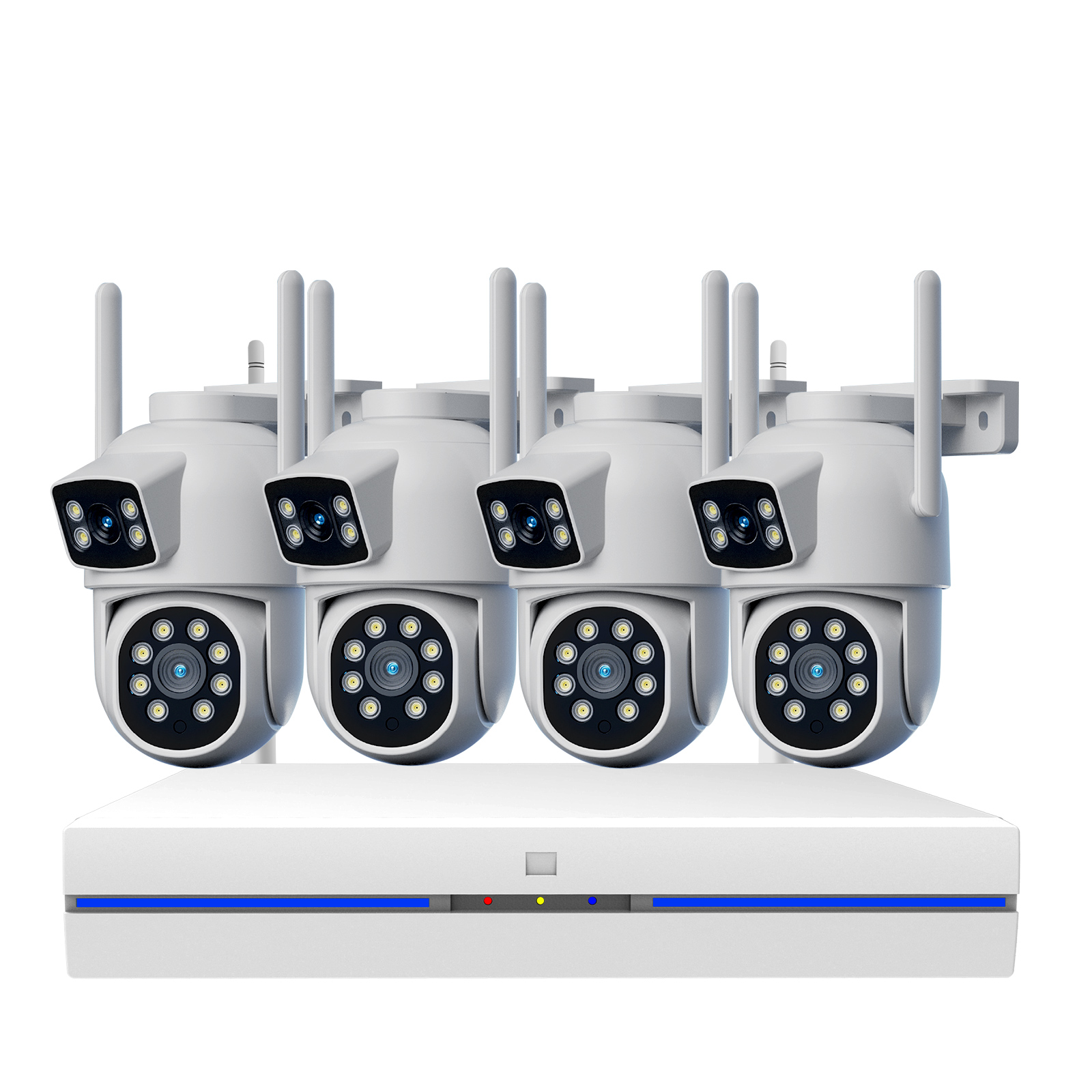

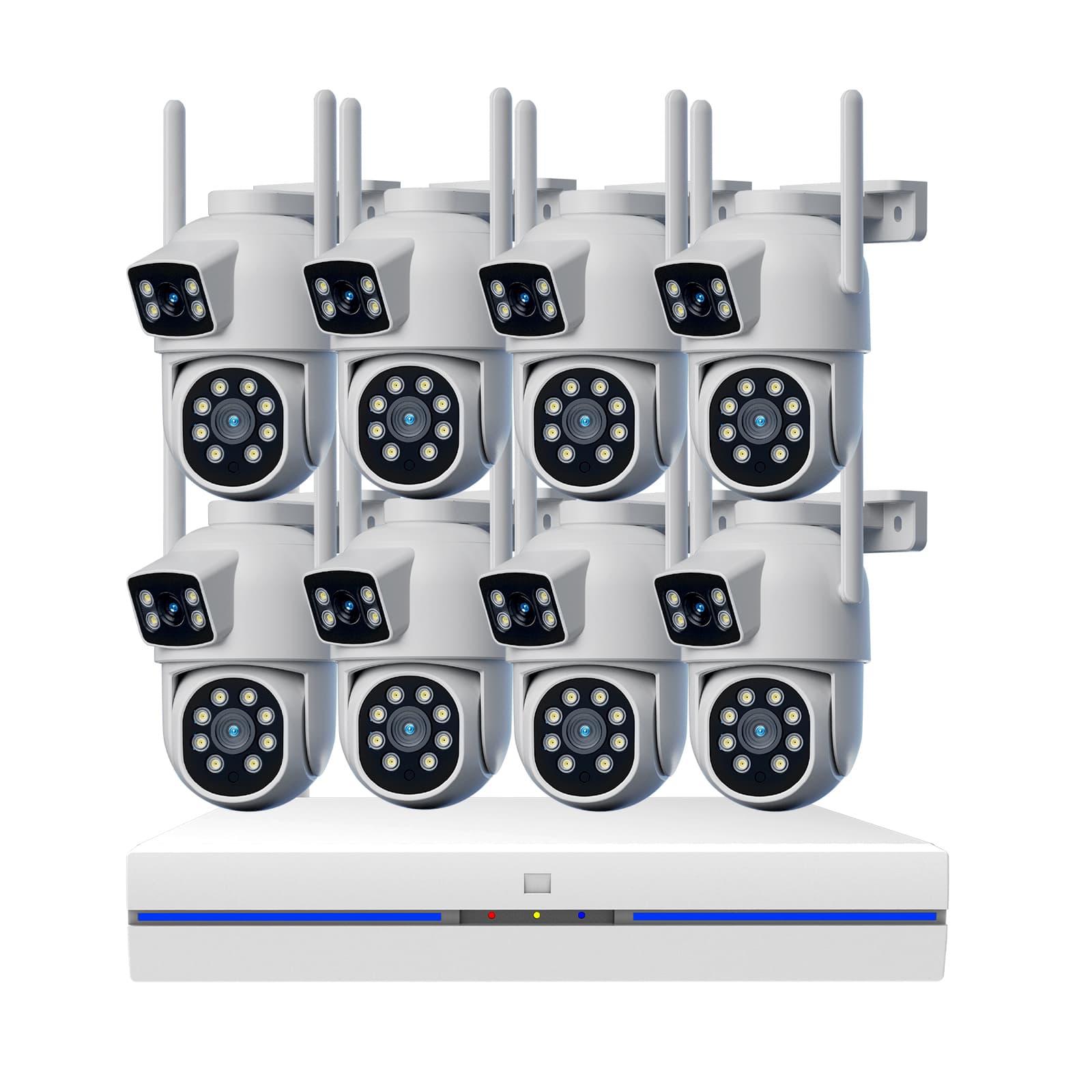

- Dual Lens Wireless 4MP Camera System
-
Order Model: YDTWX49PBK (4MP)
Operate APP: Tuya Smart / Smart Life
Support Service: OEM APP/ Package OEM / OEM Logo / Color OEM
16CH 4K WIFI NVR |
|
Compression format |
H.264&H.265 Embedded Linux Operation System |
Channels |
16CH 4K |
Video Input |
16ch wireless or RJ 45 Interface |
HDMI Output |
HD 1080P / 2K |
Internet connection |
2.4g & 5.8g connection |
Recording & Playback |
16 ch 3MP Recording & 4ch Playback 16ch 4MP Recording &4ch Playback 16ch 5mp Recording & 2ch Playback 16ch 8mp Recording &1CH Playback |
Internet Protocol |
UPnP ,SMTP ,PPoE ,DHCP |
Storage |
3.5 inch HDD Max. 6TB |
Backup |
USB / Internet Cloud |
Network |
RJ45 10M / 100M Internet Interface |
USB Interface |
1 * USB2.0 or 2*USB 2.0 Interface Option |
Device Control |
USB Mouse |
Power |
12V /3A Power |
Work Tem.&Hum |
-10°~ 55°, ≤95% |
WIFI Dual lens PTZ camera |
|
Pixel |
4MP |
Sensor |
1/3” CMOS Sensor*2 |
Lens |
4mm & 4mm lens |
Camera |
PTZ camera *1 & Bullet camera*1 |
Resolution |
Main stream:2880*1080@15fps; Sub stream:1200*448@15fps |
Frame rate |
15fps |
Compression |
H.264/H.265 Video encoding, supports dual streams |
Audio |
AAC、G711 |
Audio enabled |
2-way Audio |
WIFI |
2.4g & 5.8g |
Support agreement |
Support N1 agreement |
Min. Illumination |
Color: 0.1Lux,B/W 0.01 Lux |
IR LED |
12pcs full color Leds |
Full light length |
IR: 15M (varies by environment) |
Power |
DC12V |
